ETFE /FEP Insulation Litz Wire 0.21mmx7 Strands

Name: ETFE FEP Insulation Litz Wire 021mmx7 Strands
Brand: RVYUAN
Price: 1 USD

Brand Name : RVYUAN

Model Number : 0.21mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 1000 meter

Price : Negotiation

Payment Terms : T/T/Paypal

Supply Ability : 1Ton/Month

Delivery Time : 7 days

Packaging Details : Carton

Product Name : ETFE /FEP Insulation Litz Wire 0.21mmx7 Strands

Thermal rating : 155

Diameter : 0.21mm

Conductor material : Copper

Key word : ETFE /FEP Insulation Litz Wire 0.21mmx7 Strands

Contact Now

ETFE /FEP Insulation Litz Wire 0.21mmx7 Strands

Product Description

The wires are insulated with ETFE (ethylene tetrafluoroethylene), a high-performance polymer renowned for its exceptional heat and chemical resistance. The ETFE insulation is applied using an extrusion process, ensuring a uniform and durable coating, providing superior protection against environmental factors such as moisture, chemicals, and extreme temperatures.

Technical Specifications

Characteristics	Test Standard	Test result
Conductor Diameter	0.21±0.003MM	0.208	0.209	0.209
Min. insulation thickness	/	0.004	0.004	0.005
Single wire Diameter	/	0.212	0.213	0.214
Overall dimension	/	0.870	0.880	0.880
Conductor Resistance	Max. 73.93Ω/KM	74.52	75.02	74.83
Breakdown voltage	Min. 6KVA	14.5	13.82	14.6
Elongation	MIN:15%	19.4-22.9%
Solder ability	400℃ 3Secs	OK	OK	OK
Conclusion	Qualified

ETFE /FEP Insulation Litz Wire 0.21mmx7 Strands

Product Tags:

ETFE FEP insulated Litz wire

0.21mm 7 strand Litz wire

triple insulated wire with warranty

Quality ETFE /FEP Insulation Litz Wire 0.21mmx7 Strands for sale

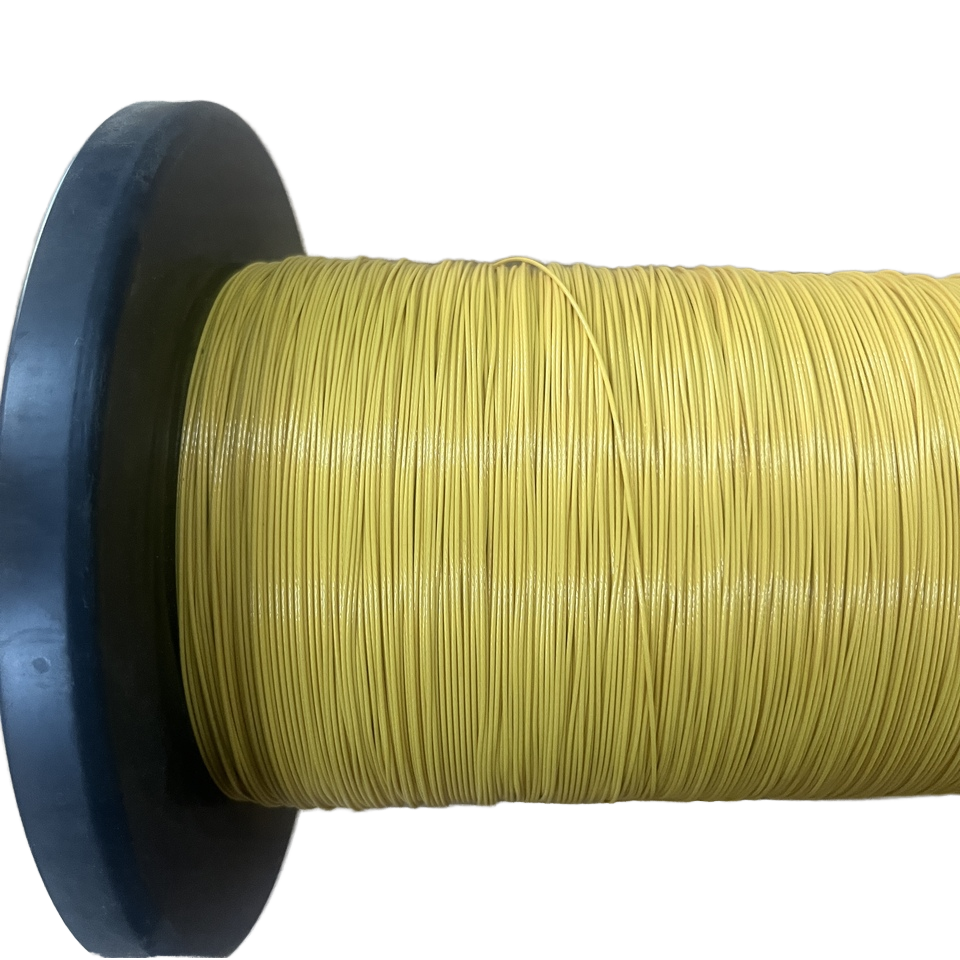

ETFE /FEP Insulation Litz Wire 0.21mmx7 Strands Images
